Product Overview
GreenTouch's 6A-2C series capacitive touchmonitors are designed and developed as touch solutions for automated information systems, gaming and entertainment, as well as light industrial automation control, and round out GreenTouch's lineup of touchmonitors. 6A-2C touchmonitors are based on the “Designed for Touch” concept and offer proven professionalism and reliability, even when replaced with new generation LCD panels in the future. The 6A-2C touchmonitor is based on the “Designed for Touch” concept and offers proven professionalism and reliability without external changes, even if the LCD panel is replaced by a new generation in the future. Designed and built by Greene Touch, this model has a long life cycle and can be supplied for long-term needs.

   6A-2C触显详情2.jpg     Product Features
♦ Adopting high quality LCD screen, 1 billion colors and high precision color correction, so that the color presentation is more accurate and rich;
♦ Professional image processing technology can effectively reduce noise, presenting pure and delicate picture quality;
♦ Adopting multi-point projected capacitive touch technology, touching the dead zone without skipping points, constant points, sensitive response;
♦ 60Hz refresh rate fast reading, improve clarity and picture quality, 8ms fast response to reduce the screen drag, residual shadow and other scene changes too fast display phenomenon;
♦  Adopt TFT LED backlight technology, evenly convey the whole screen, bright screen life of up to 60,000 hours or more, energy saving and low consumption, can meet the needs of all kinds of scenes.


Multi-screen Display
Supports external expansion of VGA/HDMI monitors while synchronized dual-display or synchronized heterodyne to achieve multi-tasking display with no delay in the screen.

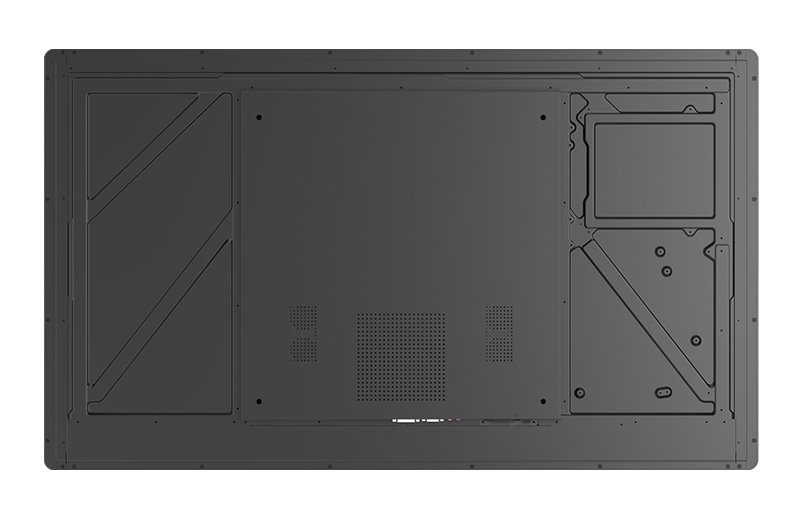

Product Backshell

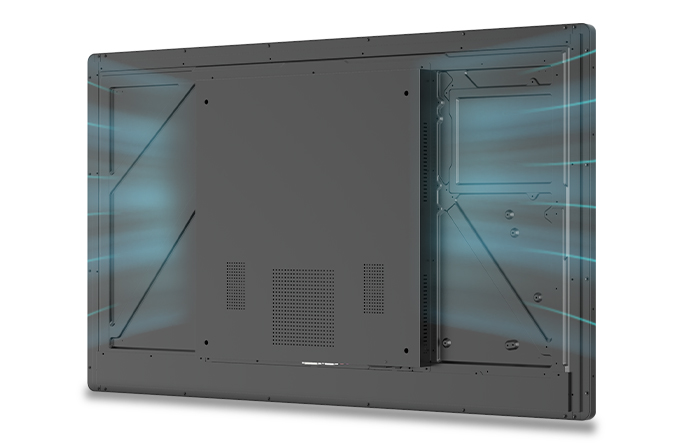

Black sheet metal paint shell, solid and stable, adapt to -20 ℃ ~ 60 ℃ high and low temperature environment can be timely and effective heat dissipation, to ensure that the machine can be a long time stable operation.

3C触显详情5.jpg   Customization
1.Screen customization
→Surface treatment (AG/AF/AR), size, brightness (300-1000cd/m²) customization
2.Appearance customization
→LOGO, interface (VGA, HDMI, DVI, DP, USB, etc.), body color/size and other appearance customization
3.Special environment customization
→ Installation method, high and low temperature environment, interference environment, other environment customization

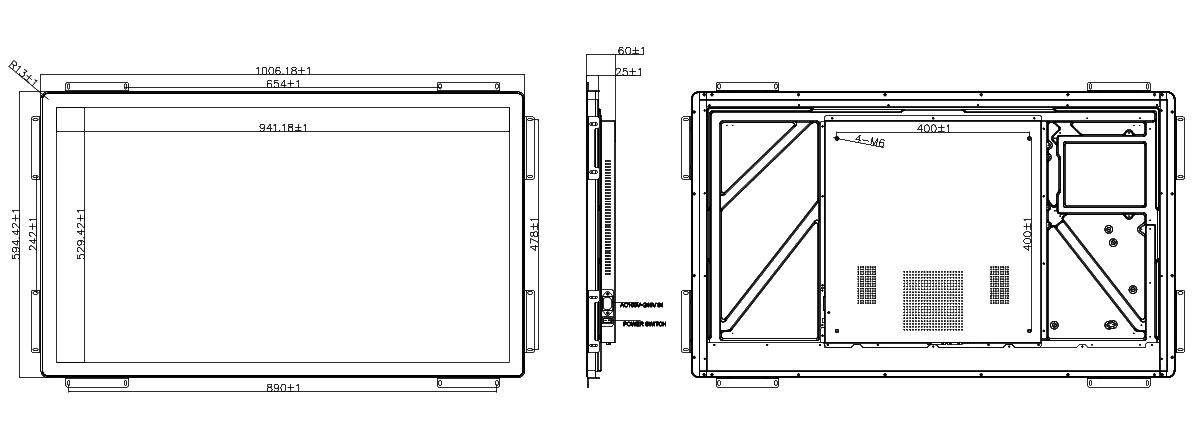

Drawing Show

GT-TM4306A-2C-Model


About Display Ports


(Front)DP1.2+HDMI2.0+HDMI1.4                                                                                (Side)

6A ports.jpg

Application Scenario


Product Parameters

Product Name

Large industrial touch monitors(6A series)

Type:

GT-TM6A-2C

Regular Sizes

32",43",50",55",65"

Display Type/Colors

Active Matrix TFT LCD, LED Backlight,16.7M or 1.07G

View Angle

(From Center):

(Vertical(up/down):±89°oratotal of178)°

Case/ Frame Color:

Black

Input Video Formats:

VGA,DVI,HDMI,DP (32" );HDMI2.0,HDMI1.4,DP1.2(43"~55")

Touch Technology:

projected capacitive

Touch Points

10 Points

Touch chip:

ilitek

Touch Supply Voltage:

5V

Touch Interface

USB

Touch Support System:

Windows,Android,Linux

Power:

External AC, input voltage-AC: 100-240VAC 50HZ-60HZ; input power connector specification (on the all-in-one machine)-type: pin suffix socket

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 60°C

Operating Humidity

20% to 80% (No Condensation)

Storage Humidity

10% to 90% (Non-condensing)

Mounting Options:

200mm or 400mm VESA hole mounting

Surface Treatment:

NA(AR,AG,AF,mirror face)

Certificates

RoHS,FCC,CE,CB,HDMI Testing

Warranty

1 Year
