Product Overview

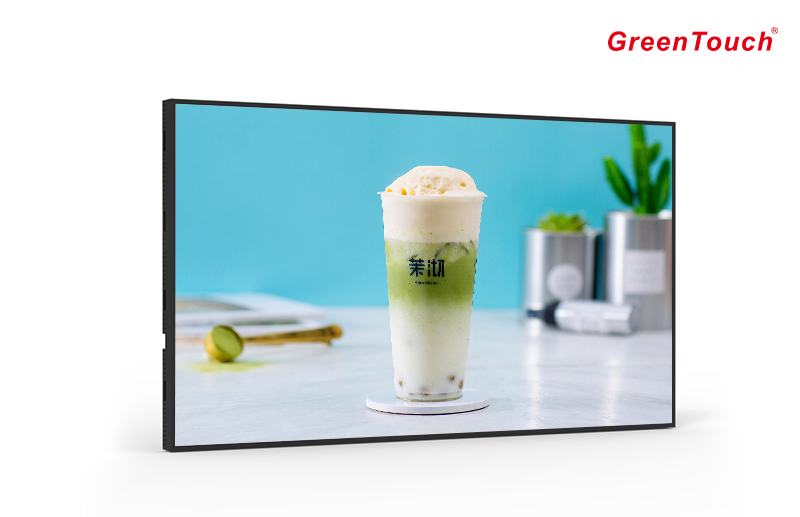

GreenTouch GT-OCDX series light box advertising machine adopts ultra-narrow bezel (only 3.8mm) design, and the material is aluminum shell + tempered glass panel; the appearance is ultra-thin, beautiful and strong, and looks like a light box. The main board adopts Rockchip RK3288 quad-core processor, which is the world's first 4Kx2K hard-coded H.265 video chip, featuring stable performance, high-efficiency operation, and fast response. Support timing switch, reduce unnecessary waste of electricity at night, remote control, convenient management terminal, increase work efficiency, widely used in restaurants, airports, stations, restaurants and restaurants and other places.
   LCD lightbox advertising machine1.jpg

   LCD lightbox advertising machine2.jpg     Product Structure
1. Shell color: silver/black optional
2. Material: aluminum shell + tempered glass panel
3. The appearance is like a light box, with ultra-narrow bezel design (only 3.8mm)

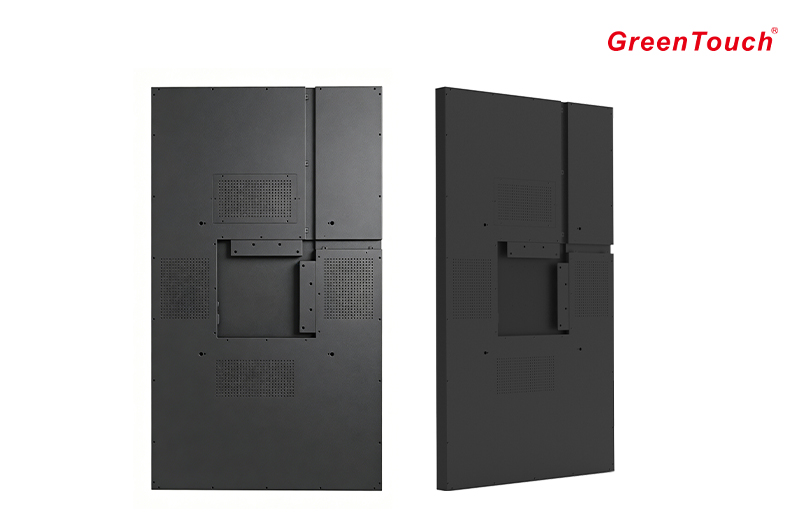

4. The rear shell of the advertising machine is equipped with dense cooling holes and fixed installation holes(Support horizontal and vertical screen installation)


Product Features
♦ The motherboard adopts Ruixin Micro RK3288 processor, which supports 1080P multi-format video decoding and image enhancement processing
♦ 1920*1080P high-definition display, 178° wide viewing angle, covering RGB wide color gamut, rich colors, clear and smooth playback
♦ Built-in speakers, stereo surround sound, clear sound quality, can freely adjust the surround sound effect of multiple sets of speakers
♦ Support a variety of signal input/output, support U disk, SD card intelligent automatic playback content
   LCD lightbox advertising machine3.jpg

LCD lightbox advertising machine4.jpgIntelligent Split Screen System
⑴ When making a program, you can stretch, drag and drop the video playback area and size arbitrarily;
⑵ Support subtitle scrolling up, down, left, right, font size, font color, background color can be changed;
⑶ The system comes with a digital calendar clock module, a weather forecast module, and a program template library, and supports self-designed templates.


System compatibility and scalability
Remote control terminal - The service terminal can be synchronized through the content management system to manage the release of advertising content;
Timing switch - the system can set the daily or weekly switch time of the terminal, which can not only increase work efficiency, but also reduce unnecessary waste of electricity at night;
Stand-alone playback - Support U disk, SD card intelligent automatic playback of content, put the U disk in and out of the player, after the import is completed, the U disk can play the program;
Video format - RMVB, FLV, AVI, MOV, WMV, MP4, MPEG, etc.
Image format - JPG, JPEG, BMP, PNG, GIF
   LCD lightbox advertising machine5.jpg



Installation

How to install the advertising machine.jpg


Application Scenario

Smart lightbox application.jpg

Product Parameters

Product Name

LCD lightbox advertising machine

Type:

GT-OCDX

Regular Sizes

32",40",43",50",55",65"

Case Color:

frame silver/black;back cover black

Case Type:

Aluminum shell + tempered glass panel

Display Type:

Active matrix TFT LCD

Colors:

16.7M

Response time:

8ms

Touch Technology:

No touch(Customizable capacitive or infrared touch)

Contrast ratio:

3500:1/5000:1

Processor:

Quad Core Cortex-A17 +Quad Core GPU Mail-T764

OS:

Android

Motherboard:

Ruixin Micro RK3288

RAM:

4G

Network support:

4G/Ethernet, support WIFI / Bluetooth 4.0

Storage:

32G

Video:

RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

Mage Format:

JPG, JPEG, BMP, PNG, GIF

Connector:

Lan,2*USB,HDMI,SD CARD,3.5MM Audio Socket

Audio frequency:

2* 5W

Certificates

FCC, CE, China RoHS

Warranty

1 Year
