    85'' Capacitive Conference All-in-one

  • Category:
    Capacitive Conference All-in-one
  • Model:
  • Browse number:
    1609
  • Release time:
    2023-02-08 16:54:30
  • E-mail:ifo@greentouch.com.cn INQUIRY

Product Overview
GreenTouch conference whiteboard is a smart conference device.It integrates many technologies such as high-definition display,human-computer interaction,multimedia information processing and network transmission,making it easy to write on the conference machine.Annotation,synchronous interaction,multimedia,remote video conferencing,etc.,greatly improve communication efficiency in applications such as conferences,presentations,industry command,deployment,etc.,and are the preferred solutions for office,teaching,and graphic interactive presentations.

   电容会议机详情2.jpg     Product Description
1)Multifunctional integration,time-saving and labor-saving,efficient office,let you experience smart meeting.
2)Integrates the functions of computer,large-screen TV,audio,screen,projection, whiteboard and advertising machine set-top box to simplify the conference.
3)Smart whiteboard,experience smooth and delicate writing,capacitive 10-touch panel,0.04s quick response,1.0mm high-precision writing can quickly write annotations, erase and other operations.
4)Support PC/Android/Apple multi-device one-key screen projection,support reverse control of large screens,and support four-party screen projection at the same time, making the operation more flexible.
5)Video conferencing,remote assistance to break space restrictions,remote screen projection,writing synchronization,screen sharing to complete every meeting decision anytime,anywhere.


Product Features
◇ Smart Whiteboard ±1mm for fine writing
◇ 4K picture quality, ultra-clear display
◇ Stable wireless projection
◇ Multiple presentations:Word,Excel,PDF,PPT
◇ Sensitive capacitive 10-point Touch Screen
◇ Conference dual systems
◇ Ultra-thin body,extremely narrow side 30mm
◇ Diverse applications,effective office
◇ Fully fit design,one-piece molding
◇ Hard core configuration

电容会议机详情4.jpgAppearance Description
① Aluminum alloy frame,sandblasted and anodized on the surface,iron case back cover,active heat dissipation;
② 4mm physical toughened anti-riot glass to enhance the visual effect and enhance the touch experience;
③ Use international standard OPS slot,integrated plug-in design,easy to upgrade and maintain,there is no visible connection line of computer module outside,and the body is beautiful;
④ Speaker output front,sidebar gesture menu, front button one-key start,can open and close the screen and the host at the same time,the operation is simple and convenient.


Screen And Host Configuration
4K (3840*2160) picture quality,ultra-high-definition premium original screen,delicate display,true reproduction of every detail.The tempered glass and the screen are fully fitted design,glass hardness is 7H,so the screen can be scratched,writing as you want,and using it more at ease. Hard core configuration,Motherboard: i5 4200U, optional i3/i7,Main chipset:Haswell-U,Broadwell-U high-speed chipset,CPU: CoreB series, RAM: DDR_8G,Storage:SSD 128G,enjoy dual system experience.Support optional OPS computer module to achieve dual systems,freely switch to use Android 8.0 and Windows 10,compatible with more software applications.OPS configuration is flexible,optional OPS computer module,Win 7/Win 10 plug and play,can be upgraded or customized according to needs.

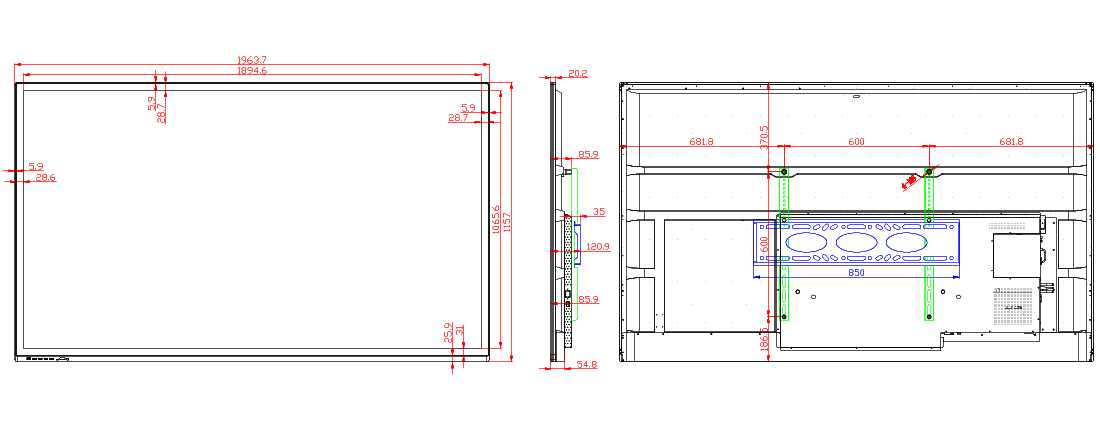

Drawing Show

TC-850CMH-PCAP



Installation

(1) Wall-mounted installation (standard configuration bracket)


(2) Mobile bracket installation (buy the bracket yourself)



Application Scenario


Product Parameters

Product Name

Conference All-in-one Machine Whiteboard

Type:

TC-CMH-PCAP

Regular Sizes

65",75",85"

Shell material:

Aluminum alloy frame,black

Screen type:

Active matrix TFT LCD

Resolution:

3840 x 2160 @ 60Hz

Brightness (typical):

350cd/

Contrast ratio:

1400:1

Colors:

8 bit/16.7 Million

Viewing angle:

178°(H)/178°(V)

Touch type:

Capacitive,10 Points Touch

Touch drive mode:

HID free drive

Touch screen glass:

4MM tempered glass

Touch screen sensing method:

Finger pad or capacitive pen

Touch screen positioning resolution:

4096X4096

Touch system communication port:

USB 2.0

Brightness (typical):

350cd/

Contrast ratio:

1400:1

Detection function and calibration:

With software automatic detection function

Viewing angle:

178°(H)/178°(V)

Touch accuracy:

≦±1mm

Operating system:

Support Win 7/8/10; Linux; android

Service life

Theory unlimited

Anti-external light test:

Full angle resistance to ambient light

Windows system

Android system

Motherboard:

Core I5 4200U

Processor:

MSD848(8386)

RAM:

DDR_8G

RAM:

DDR_3G

Storage:

SSD:128G

Storage:

SSD:32G

Network card:

Integrated 10/100/1000M bps Ethernet

Network card:

Ethernet, WiFi, 4G network

WIFI:

Scalable2.4G/5G,150/300Mbps

speaker:

2

Interface:

USB 3.0*2,USB 2.0*2,EARPHONE,MIC,VGA output,HDMI

Interface:

RJ45,HDMI*2,TOUVH USB,VGA,AUDIO IN YPBPR,AV,TV,SPDIF,EARPHONE

Operation Temperature:

-10° C -55° C

Storage Temperature:

-20° C~ 60° C

Humidity:

10%~90% RH, Noncondensing

Voltage range:

AC 110240V-50/60HZ
