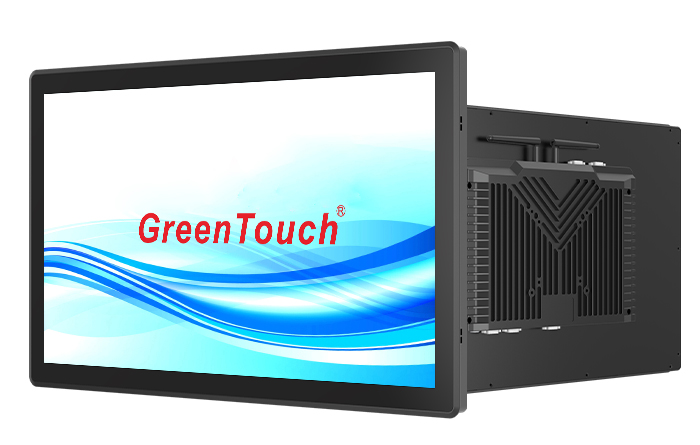

Product Overview
GreenTouch's self-developed fully enclosed aluminum alloy industrial display(touch display/monitor/touch monitor/touch screen/touchscreen/LCD monitor) 3D (10.1”-23.8”) series is a professional display device designed to adapt to various harsh industrial environments. Its core advantages lie in high protection, durability, and adaptability, with core parameters meeting industrial-grade IP65 protection certification and 24/7 all-weather operation standards.
Product Features
● Fully sealed housing,durable construction
● Optically bonded Touch Panel to LCD Panel
● Uses original A+ industrial panels,ensuring a long lifespan
● 10-point capacitive touch,touch sensitivity
● Motherboard optional: J1900,Intel Core I3/I5/I7,RK356(Optional)
● Customizable: Size,Logo,Color,Casing,Packaging
● Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

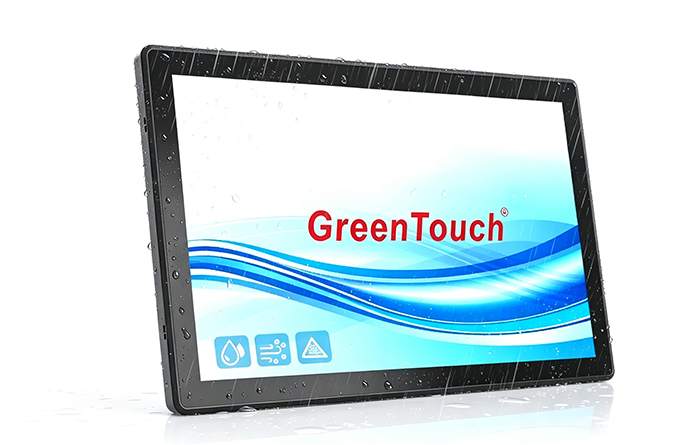

Product Performance
In harsh industrial environments, stability and durability equate to efficiency. Our 3D industrial touch displays boast an IP65 waterproof and dustproof rating, impervious to dust, water splashes, and oil stains; the front can even be directly sprayed with water for touch. With an IK08 explosion-proof rating, they can withstand 5 joules of impact, effectively preventing damage from human or mechanical collisions. Furthermore, they are EMC anti-interference certified, ensuring accurate touch control and uninterrupted signal even in strong electromagnetic fields such as those from inverters and radio sources. From automated workshops to outdoor terminals, reliable 24/7 operation safeguards your smart manufacturing.

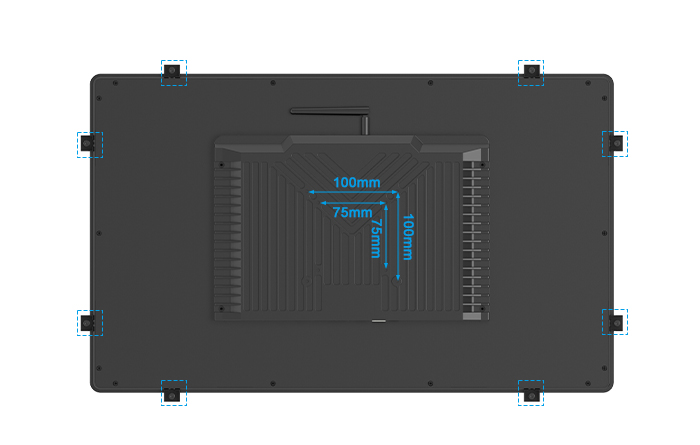

Product Installation
Flexible 3D installation options: Supports embedded mounting with side-mounted clips for a seamless fit within the rack,providing stability and shock resistance; 75x100mm VESA mounting holes on the back allow for easy wall mounting or desktop bracket installation.Quickly adaptable to various industries,meeting your industrial needs.

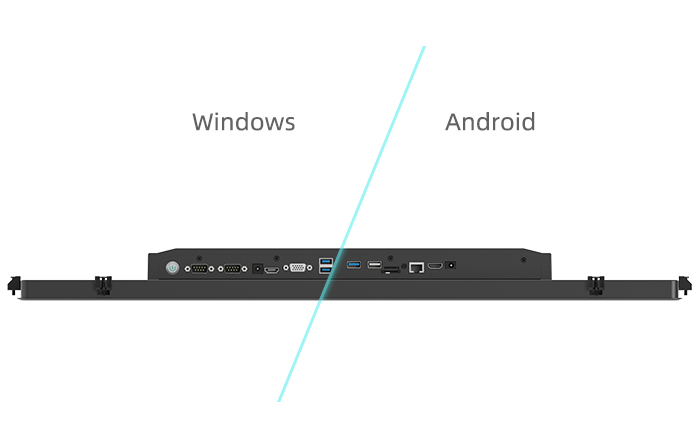

Windows/Android Optional
The 3D series industrial all-in-one offer a choice of X86 or Android motherboards. The Windows Touch Panel PC feature a range of I/O interfaces to support various third-party peripherals. Standard interfaces include two RS-232 ports, four USB ports, a Gigabit Ethernet port, 3.5mm audio input/output jacks, and both VGA and HDMI video outputs (facilitating connection to a second, customer-facing screen).
The Android Touch Panel PC are equipped with multiple interfaces to support various third-party peripherals; standard interfaces include two standard USB ports, one RS-232 serial port, a Gigabit Ethernet port, 3.5mm stereo audio output, a TF card slot, a lockable SIM card slot, and an HDMI video output (facilitating connection to a second, customer-facing display).

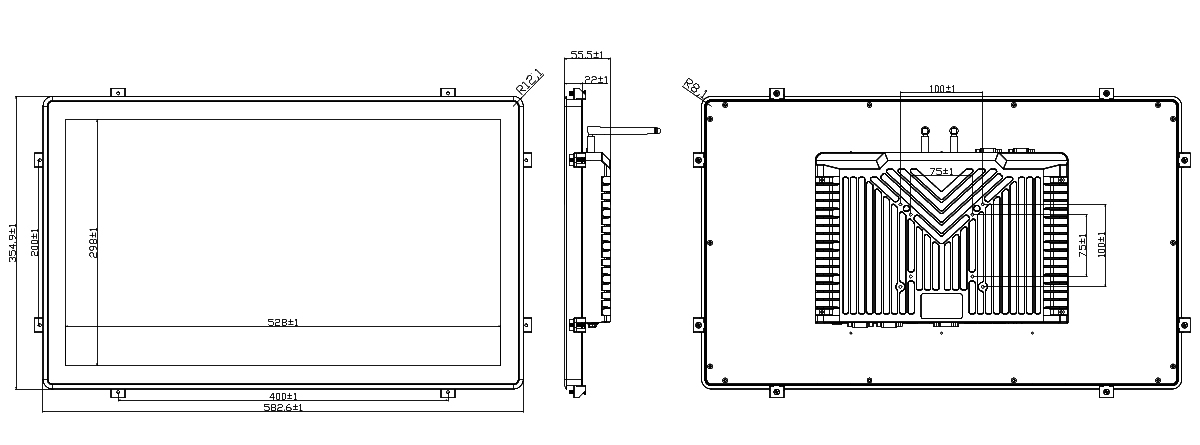

Drawing Show
GT-TC2383D-Model
Application Scenario
Product Parameters
| Product Name: | Panel Mount Touch Panel PC(3D series) | Model: | GT-TC2383D |
| Regular Sizes: | 10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",23.6",23.8" | Display Type/Colors: | TFT LCD, LED Backlight,16.7M |
| View Angle (Center): | 10.1"/13.3"/15"(170°/170°);10.4"(160°/160°);12.1"(176°/176°);15.6"/18.5"/21.5"/23.6"/23.8"(178°/178°);17"/19"(170°/160°) | ||
| Case/Frame Color: | Black | Touch Technology: | projected capacitive 10 Points |
| Touch chip: | weida | Touch Supply Voltage: | 5V |
| Touch Interface: | USB | Touch Support System: | Windows,Android,Linux |
| Operating Temp: | -20°C to 70°C(10.1"/12.1");-10°C to 60°C (10.4"); -10°C to 70°C (15"); 0°C to 50°C(13.3"~23.8") | Storage Temp： | -30°C to 80°C (10.1"/12.1"/15"); -20°C to 70°C (10.4");-20°C to 60°C (13.3"~/23.8") |
| Operating Humidity: | 20% to 80% (No Condensation) | Storage Humidity: | 10% to 90% (Non-condensing) |
| Mounting Options: | 75x100mm VESA; Fixed buckle | Performance: | IP65(front)/IK06(front) |
| X86 Motherboard: | Android Motherboard: | ||
| CPU: | Intel Core i3/i5/i7,Intel J1900 | CPU: | Rockchip RK3566/3568/3588 |
| RAM: | 2GB,4GB,8GB Optional | RAM: | 2GB,4GB,8GB Optional |
| SSD: | 32G,64G,128G,256G,512G Optional | SSD: | 32G,64G |
| HDD: | Optional addition of 500G,1T HDD | Network support: | 3G,4G,5G,Ethernet,WiFi/Bluetooth 4.0 |
| WIFI: | Built-in 802.11b /g/n wireless | WIFI: | Built-in 802.11b /g/n wireless |
| Interface: | RS-232*2,DC 12V IN,HDMI,VGA,USB*4,LAN,AUDIO I/O | Interface: | USB*2,TF,PHONE,LAN,HDMI,DC 12V IN |
| Supported OS: | Windows OS(suggest Windows7 up );Linux ;Android x86 | Supported OS: | Android |
| Certificates: | RoHS,FCC,CE,CB,HDMI Testing | Warranty: | 1-3 Year |
