17" Open Frame Industrial Touch Monitor 2C Series

Quality And Service Description

2C touch monitor adopt projected capacitive 10-point touch,sensitive sensing,accurate fixed point,anti-jamming positioning technology,small-strength touch has both sensing,fast and fast response,achieving super positioning and precise tracking.We provide one-year warranty for global customers,from product design to production,to software,to product testing,all by our company's professional team,in pursuit of perfect product operation and peripheral after-sales service.2C touch screen monitor have passed the CE,FCC,CB,RoHS,HDMI certifications.

Product Features

♦ Pure flat front panel,adopt A+grade original industrial LED screen.

♦ Front panel is waterproof(IP65),dustproof (IP65) and explosion-proof(IK08).

♦ Industrial plastic front shell,industrial black metal frame,durable and reliable.

♦ Good sealing performance,passed EMC anti-interference testing.

♦ Dense ventilation holes on the back,efficient heat dissipation.

♦ Multi-size 7" to 55" optional,support OEM/ODM services.

Back Shell And Installation

As shown the picture,2C touch monitor 17" is equipped with external bracket for embedded installation，it is equipped with a standard Vesa (75mm x 100mm) mounting hole for desktop or wall-mounted installation.The installation of these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios.

Product Customizable

① Product size

② Customer Logo

③  LCD brightness(300-1000 cd/m²)

④ Glass of surface treatment AG,AF,AR

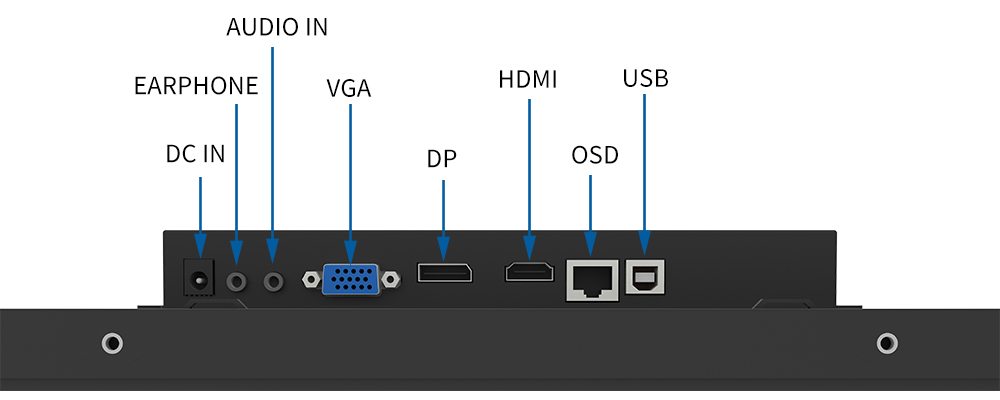

⑤ Display ports（VGA,DVI,HDMI,DP,USB or more）

Regular Sizes：

7",8",9.7",10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",49",55"

Display Type：

Active Matrix TFT LCD, LED Backlight

Display Colors:

16.7M

View Angle

(From Center):

L/R:85/85;U/D:85/85 (Type) (CR≥10)

Case/ Frame Color:：

Black

Input Video Formats:

VGA,DVI,HDMI,DP (Optional )

Touch Technology:

Projected Capacitive

Touch Points：

10 Points

Touch Chip:

EETI,ILITEK,WEIDA

Touch Supply Voltage:

5V

Touch Interface：

USB

Touch Support System：

Windows，Android，Linux

Power:

External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，External DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);

Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm);

Operating Temperature：

0°C to 50°C

Storage Temperature：

 –20°C to 60°C

Operating Humidity：

20% to 80% (No Condensation)

Storage Humidity：

10% to 90% (Non-condensing)

Mounting Options:

100mm or 75mm VESA Mounting,Open Bracket Mounting

Performance:

IP65(Front)/IK08(Front)

Certificates：

UL(power supply), FCC, CE, CB,HDMI ATC Testing

Warranty：

1 Year
