Product Overview

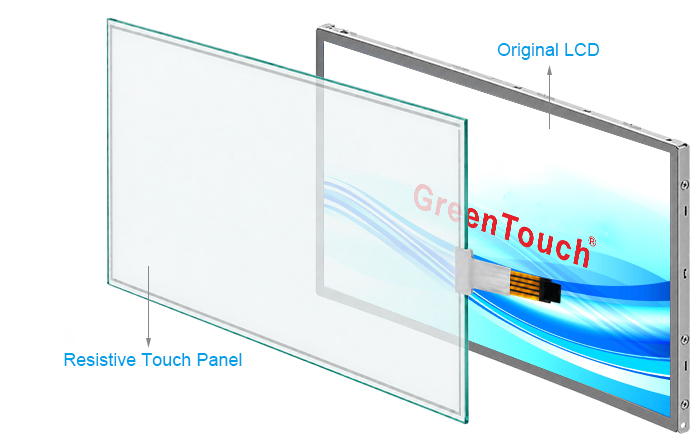

GreenTouch 5A Series open frame resistive touch monitors combine a reliable resistive touchscreen with an industrial-grade LCD display in a compact embedded design, providing a cost-effective solution for industrial and commercial equipment manufacturers. The compact narrow-bezel structure and sealed touchscreen design make the monitor easy to integrate into kiosks, cabinets, control panels, and embedded equipment. Its resistive touch technology supports precise operation with fingers, gloves, or a stylus, making it suitable for demanding industrial environments.
Quality And Service
5A touch monitor 18.5" adopt 4-wire/5-wire Resistive, single Touch.From product design to production,to software development and product testing,all the processes are under the responsibility of GreenTouch, pursuing the perfect operation of the product and good service.5A touch display is stable and reliable,with excellent image clarity,resolution,transparency,good accuracy and vivid images,which can instantly capture and attract attention.5A touch monitor have passed the CE,FCC,CB,RoHS, HDMI certifications.
Product Features

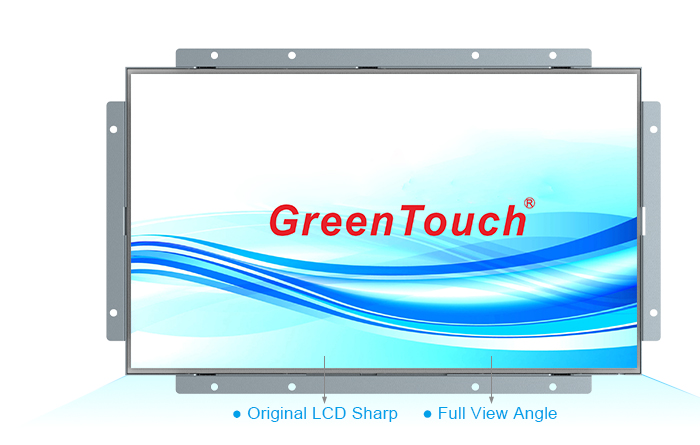

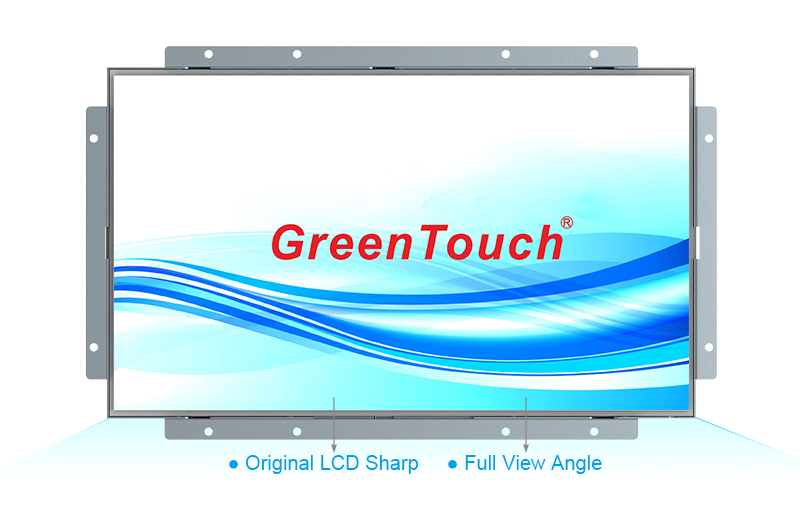

1.Pure flat front panel,adopt original a-Si TFT-LCD(Sharp LQ156T3LW05).
2.Full view angle and brightness 400 cd/m²,operating temperature -20℃~70℃
3.Single touch,no jumping points,no break points,no blind spots.
4.Industrial metal front shell and frame,durable and reliable.
5.Good sealing performance,passed EMC anti-interference testing.
6.Optional external mounting bracket and standard VESA mounting.

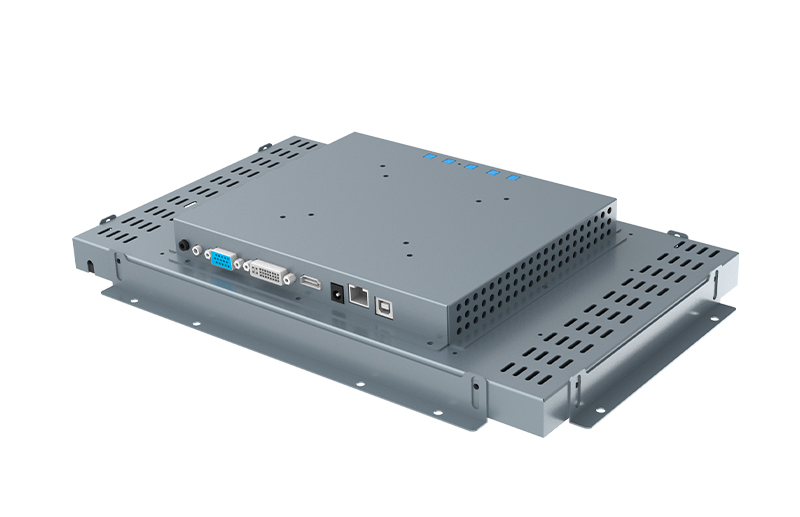

Back Shell And Installation

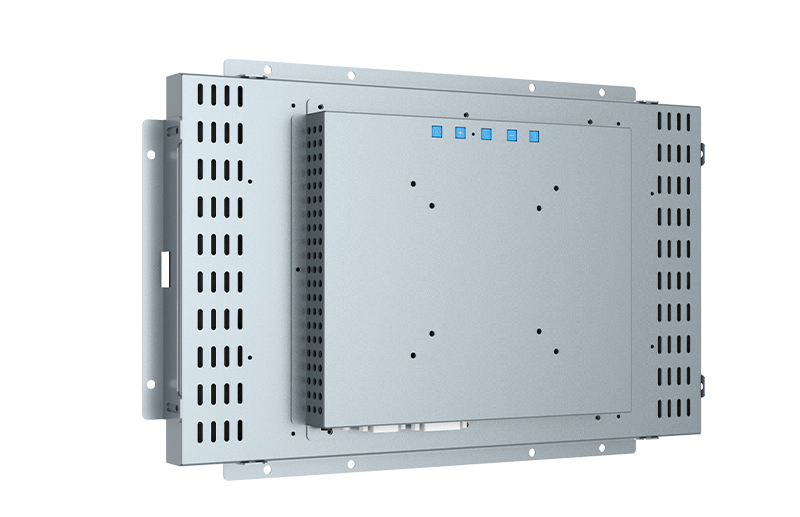

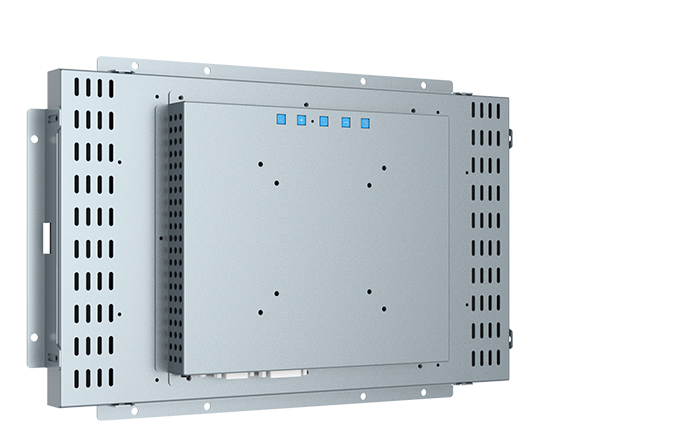

As shown left picture,5A touch monitor is equipped with external bracket for embedded installation.The back shell is equipped with a standard VESA (100mm x 75mm) mounting hole for desktop or wall-mounted installation.The installation of these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios.
Product Customization
GreenTouch provides a wide range of customization options to meet your requirements,including product size,customer logo,LCD panel brightness 300-1000nits, glass cover surface treatment AG, AF, AR ,display ports（VGA,DVI,HDMI, DP,USB or more).The power plug is selected according to different styles of each country.

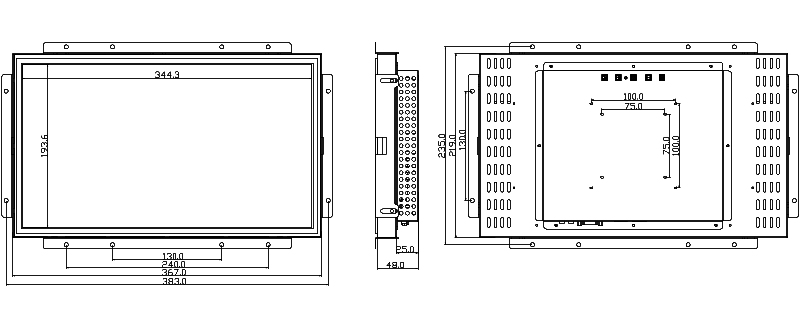

Drawing Show
GT-TM1565A-R4,GT-TM1565A-R5
Product Packaging
Product Application
Product Parameters
| Product Name | Resistive Touch Monitor |
| Size | 15.6 Inch |
| Type | GT-TM1565A-R4,GT-TM1565A-R5 |
| Panel | a-Si TFT-LCD |
| Optimal Viewing Angle | Full View Angle |
| Brightness | 400 cd/m² |
| Active Area Dimensions | 344.232mm(H) x 193.536mm(V) |
| Display Size | 367mm(W) x219mm(H),Thickness: 48 mm |
| Resolution(pixel) | 1366 x 768 @ 60Hz |
| Display Colors | 16.7M |
| Response Time (standard) | 35ms |
| View Angle(from center) | L/R:85/85;U/D:85/85 (Typ.)(CR≥10) |
| Contrast Ratio (standard) | 1000: 1(Typ.) |
| Input Video Formats | Analog VGA and digital DVI, HDMI(DP Optional) |
| Sweep Frequency | 31.5~60.2kHz; vertical: 56.3~75 Hz |
| Touch Interface | USB |
| Touch Support System | Windows，Android，linux |
| Power | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (±0.3 mm); Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
| Power Consumption (standard) | Display only: 13.5W(Typ. |
| Temperature | Operating: -20℃~70℃; Storage: -25℃-70℃ |
| Humidity | Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non condensing) |
| MTBF | 15,000 hours |
| Weight | (approx.) Net weight: 3.5 kg(Typ.); Shipping: 5 kg (reference) |
| Warranty | 1 year |
| OSD | Digital OSD |
| User Controls | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, phase, call default, language (English, German,Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu |
| OSD Remote Accessories | Optional controls (front):Menu, Up, Down, Select, Power |
| Mounting Options | 100mm or 75mm VESA mounting,open bracket mounting |
| Touch Type | Capacitive, Resistive, Infrared, Non-touch (optional) |
| Surface Treatment | AG AR AF（Customizable） |
| Agency Approvals | FCC, CE, CB,China RoHS CQC |
| Other Sizes | 15",15.6",17",18.5",19",21.5",23.6" |
