110'' IR Conference All-in-one

Product Overview
GreenTouch JS series conference whiteboard adopts high-precision infrared touch technology, supports multi-person writing, high-speed and smooth, and is the preferred solution for office, teaching, and graphic interactive presentation. It has many functional features such as high-definition large screen, touch writing, multi-screen interaction, and remote conference. It has built-in video conference software and is compatible with various video conference platforms. It can be applied to a variety of display scenarios such as business meetings, corporate offices, education and training, product displays, etc., greatly improving the image of corporate meetings and work efficiency.

        Product Description
1) All-in-one, time-saving and labor-saving, efficient office, allowing you to experience smart meetings.
2) Integrate computer, large-screen TV, audio, screen, projection, whiteboard, advertising set-top box and other functions into one to simplify meetings.
3) Smart whiteboard, experience smooth and delicate writing, infrared 20-point touch panel, 0.015s extremely fast response, 2.0mm high-precision writing, can quickly write comments, erase and other operations.
4) Support PC/Android/Apple multi-device one-click projection, support reverse control of large screen, and support four-way projection at the same time, the operation is more flexible.
5) Video conferencing, remote assistance breaks space restrictions, remote screen projection, synchronous writing, screen sharing, and completes every meeting decision anytime, anywhere.

Product Features
◇ Smart whiteboard ±2mm, fine writing
◇ 4K picture quality, ultra-clear display
◇ Stable wireless projection
◇ Multiple presentations: Word, Excel, PDF, PPT
◇ Sensitive infrared 20-point touch screen
◇ Conference dual system
◇ Ultra-thin body, extremely narrow side 30mm
◇ Various applications, efficient office
◇ Fully fit design, one-piece molding
◇ Hard core configuration

Appearance Description
① Aluminum alloy frame,sandblasted and anodized on the surface,iron case back cover,active heat dissipation;
② 4mm physical toughened anti-riot glass to enhance the visual effect and enhance the touch experience;
③ Use international standard OPS slot,integrated plug-in design,easy to upgrade and maintain,there is no visible connection line of computer module outside,and the body is beautiful;
④ Speaker output front,sidebar gesture menu, front button one-key start,can open and close the screen and the host at the same time,the operation is simple and convenient.

Screen And Host Configuration
4K (3840*2160) picture quality, ultra-high-definition high-quality original screen, delicate display, true reproduction of every detail. Tempered glass and screen fully bonded design, 4mm fully tempered high explosion-proof glass, not easy to scratch, write whenever you want, more secure to use. Hardcore configuration, motherboard: DZ-982PVEJ-G00X-V1.1, kernel version Android11.0, main chipset: T982 high-speed chipset, CPU: Core series, memory: DDR_4G, storage: 32G. Support optional OPS computer module to achieve dual system, free switching between Android and Windows, compatible with more software applications. OPS configuration is flexible, optional OPS computer module, Win 7/Win 10 plug-and-play, can be upgraded or customized as needed.

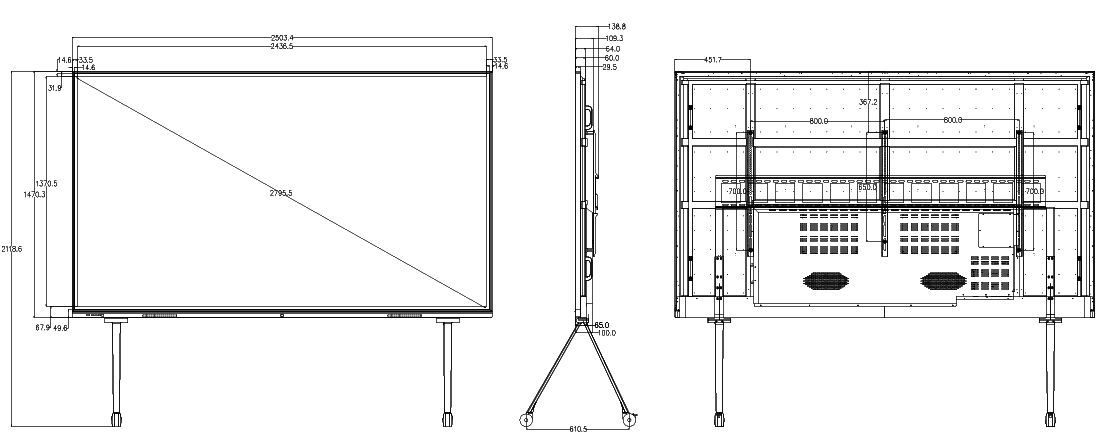

Drawing Show

TCSJ-11003S

Installation

(1) Wall-mounted installation (standard configuration bracket)

(2) Mobile bracket installation (buy the bracket yourself)

Application Scenario

Product Parameters
