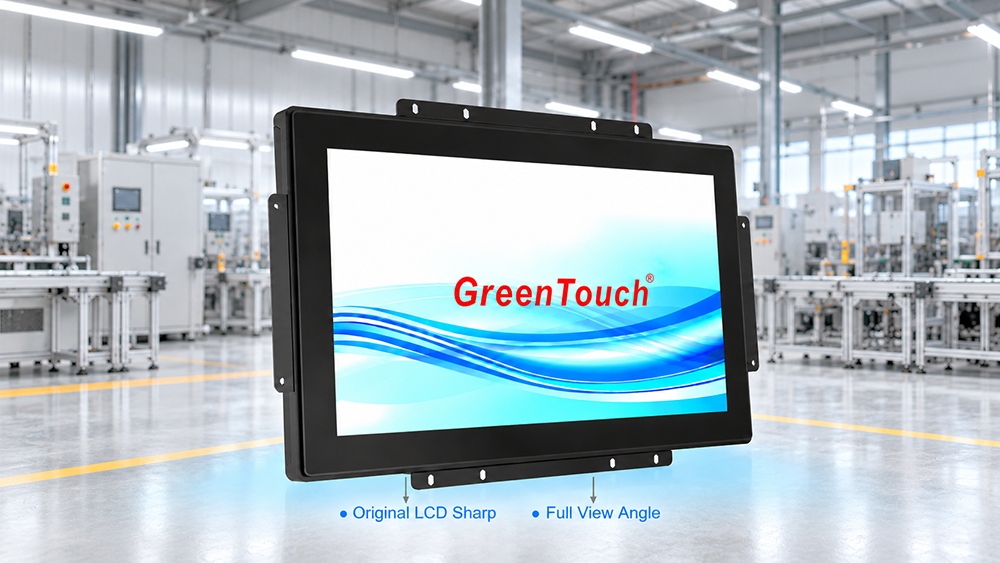

GreenTouch Releases 15.6 inch 2C Series Open Frame Touch Monitor for Industrial Self Service Embedded Integration

2026-10-16 16:24:21

GreenTouch, a trusted manufacturer of industrial touch display solutions,has rolled out its 15.6-inch Open Frame Touch Monitor (Model GT-TM1562C) from the popular 2C-series, built for seamless embedded integration within industrial automation HMI, self-service kiosks, medical devices, smart manufacturing equipment and interactive terminal systems. This open-frame touch display combines original industrial-grade LCD panel, projected capacitive multi-touch, rugged front-panel protection and rich OEM customization options for system integrators and OEM equipment builders worldwide.

Built-in Original Industrial LCD for Stable Long-Term Operation

The GT-TM1562C adopts original a-Si TFT-LCD industrial panel with full viewing-angle performance, delivering 1366×768 resolution, 400 cd/m² standard brightness, 1000:1 typical contrast ratio and 16.7 M display colors. The display maintains sharp, consistent color performance viewed from left, right, upper and lower directions. Operating temperature covers-20 ℃ ~ 70 ℃, supporting 24-hour continuous running for factory floor and heavy-use embedded scenarios. The MTBF reaches 15,000 hours to satisfy multi-year equipment lifecycle requirements.

Projected Capacitive 10-Point Touch, Cross-Platform Compatibility

This 15.6-inch open frame monitor is equipped with projected capacitive (PCAP) touch sensor, supporting up to 10-point multi-touch gestures with precise positioning, fast response and anti-interference capability. It adopts mainstream touch controller chips (Weida, EETI, ILITEK). Touch connects via standard USB interface, plug-and-play without extra driver installation, natively compatible with Windows, Linux and Android operating systems, greatly simplifying system integration work for OEM projects.

Rugged Front-Panel Protection: IP65 Dust-Water Proof & IK08 Vandal Resistance

Designed for harsh working environments, the front panel achieves IP65 dust-proof & water-proof rating together with IK08 explosion-proof / impact-proof performance. Industrial plastic front shell plus heavy-duty black metal frame improves mechanical robustness. The unit has passed EMC anti-interference testing, resisting electromagnetic noise from nearby motors and automation hardware. Optional surface treatments including Anti-Glare (AG), Anti-Reflective (AR), Anti-Fingerprint (AF) coatings can be configured for high-ambient-light working conditions.

Flexible Mounting & Rich Video Interfaces for Diverse Embedded Projects

GreenTouch 15.6” GT-TM1562C supports multiple installation solutions: open-bracket embedded cabinet mounting, plus standard VESA 75 × 75 mm / 100 × 100 mm mounting holes for wall-mount and desktop deployment.

Video input options include VGA, DVI, HDMI, and optional DP ports to match legacy and modern host controllers. The rear panel integrates OSD physical buttons for brightness, contrast, image position and language adjustment. Powered by external DC 12 V input for industrial power-supply compatibility.

Full OEM / ODM Customization Services

GreenTouch provides comprehensive custom engineering for this 2C-series open-frame touch monitor:

1.Custom screen brightness ranging from 300 cd/m² up to 1000 cd/m²

2.Custom glass surface treatments: AG / AR / AF

3.Custom display interface combinations

4.Custom printed customer logo on housing or border

5.Multiple size selection across 7-inch to 55-inch within 2C product lineup

All products are certified with CE, FCC, CB, RoHS compliance. A standard one-year global warranty is provided for every unit shipped.

Target Application Scenarios

Industrial automation HMI & production-line intelligent control

Medical auxiliary monitoring equipment

Self-service kiosks, vending terminals, self-check-in stations

IoT embedded interactive terminals

Smart retail and commercial display systems

“Our 2C-series open-frame touch monitors are purpose-built to reduce integration effort for OEM and system integrator partners,” commented GreenTouch product manager. “The 15.6-inch GT-TM1562C balances industrial-grade durability, reliable touch performance and flexible custom options, which makes it a cost-effective embedded display solution for volume industrial projects.”

Inquiry & Sample Request

Equipment manufacturers and system integrators may submit mechanical drawings and technical specifications via official website https://www.greentouch.com.tw/product/156-open-frame-touch-screen-monitor-2c-series.html for technical evaluation and prototype sample support.
