Product Overview

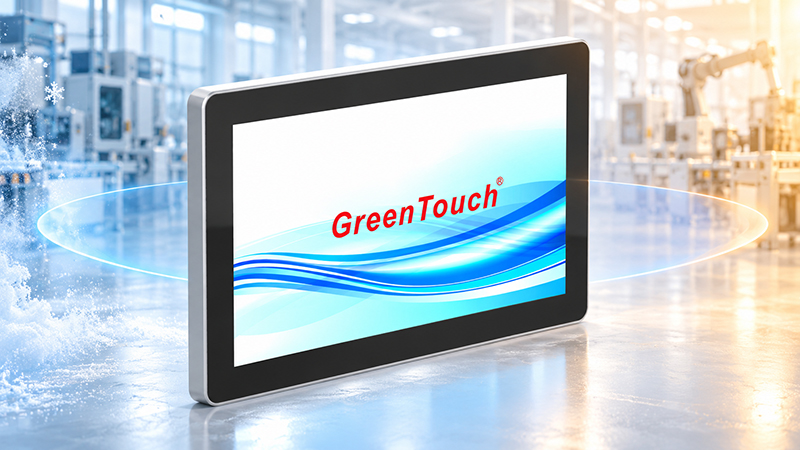

The GreenTouch 15.6" Closed Frame Touch Display (3A Series, GT-TM-1563A) is an industrial-grade touch monitor engineered for OEM projects demanding display precision, environmental resilience, and long-term reliability. Built around a pure flat front panel and an original a-Si TFT-LCD module from Sharp (LQ156T3LW05), it delivers 400 cd/m² brightness, a full view angle, and a wide operating range of -20°C to 70°C. The closed-frame design adds IP65 front protection, IK06 impact resistance, and 10-point projected capacitive touch — a ready-to-integrate solution for kiosks, medical devices, industrial HMIs, and retail terminals.

Pure Flat Front Panel with Original a-Si TFT-LCD (Sharp LQ156T3LW05)

At its heart is an original A+ grade a-Si TFT-LCD from Sharp, model LQ156T3LW05. Original-grade industrial panels deliver consistent color, stable brightness, and a long backlight life OEMs can rely on for one  to five years. The pure flat front panel removes protruding bezels and uneven surfaces, giving a smooth, seamless, easy-to-clean interface that simplifies mounting, reduces edge dust, and sharpens industrial aesthetics.

Full View Angle and 400 cd/m² Brightness

A full view angle (L/R: 80/80°, U/D: 80/80° typ.) keeps content legible from nearly any position, while 400 cd/m² brightness ensures vivid output in bright retail or factory settings. An optional anti-glare treatment suppresses reflection, keeping data readable under direct light. Brightness can be customized from 300 to 800 cd/m².

Wide-Temperature Reliability (-20°C to 70°C)

Built for demanding environments, the display operates across -20°C to 70°C, staying functional in cold storage, railway platforms, and hot production floors where consumer monitors fail. Robust thermal management prevents backlight fading, and the -20°C to 60°C storage range protects units in transit.

Closed-Frame Design: IP65 and IK06 Protection

The flat front panel is sealed via frame bonding to keep dust and water out, achieving IP65 front protection. IK06 explosion-proof tempered glass withstands impacts and keeps working even if scratched. The aluminum alloy frame and baking-painted rear shell add rigidity, and 75mm/100mm VESA holes support desktop, snap-in, and wall mounting.

10-Point Capacitive Touch and Seamless Integration

Ten-point projected capacitive touch with up to 0.1mm accuracy responds to a light touch and tracks reliably even after scratches. It works driverlessly with Windows, Android, and Linux. I/O includes VGA, DVI, HDMI, DP, and USB, powered at DC 12V (USB touch at 5V).

OEM/ODM Customization

Customize product size, logo, brightness (300–800 cd/m²), AG/AF/AR glass treatments, and display ports. The 3A series spans 7" to 27" including 15.6", 17", 19", 21.5", 23.6", and 27".

Applications

Widely used in rail transportation, education, medical terminals, retail kiosks, and industrial automation.

FAQ

Q: Operating temperature range?

A: -20°C to 70°C operating, -20°C to 60°C storage.

Q: Which LCD panel is used?

A: An original a-Si TFT-LCD from Sharp (LQ156T3LW05), A+ grade.

Q: Can brightness and glass be customized?

A: Yes, 300–800 cd/m², with AG, AF, AR options.

Q: Supported operating systems?

A: Windows, Android, Linux, driverless plug-and-play via USB.

Q: Certifications?

A: RoHS, FCC, CE, CB, HDMI.

Start Your OEM Project with GreenTouch

GreenTouch provides complete design-to-manufacturing support, from concept feasibility to volume production. Submit specifications at https://www.greentouch.com.tw/  for review and prototyping.
